避障LiDAR

SLAM LiDAR


MEMS LiDAR核心技術

避障 LiDAR 產品特點

  • Design for AGV (Automated Ground Vehicle) application
  • ToF LiDAR, No moving part
  • Worldwide NO. 1, Highest angular resolution
  • Outstanding angular resolution
  • 180°horizontal FOV
  • Detection range from 0.1 to 5m
  • Worldwide NO. 1, slimmest Obstacle Avoidance LiDAR

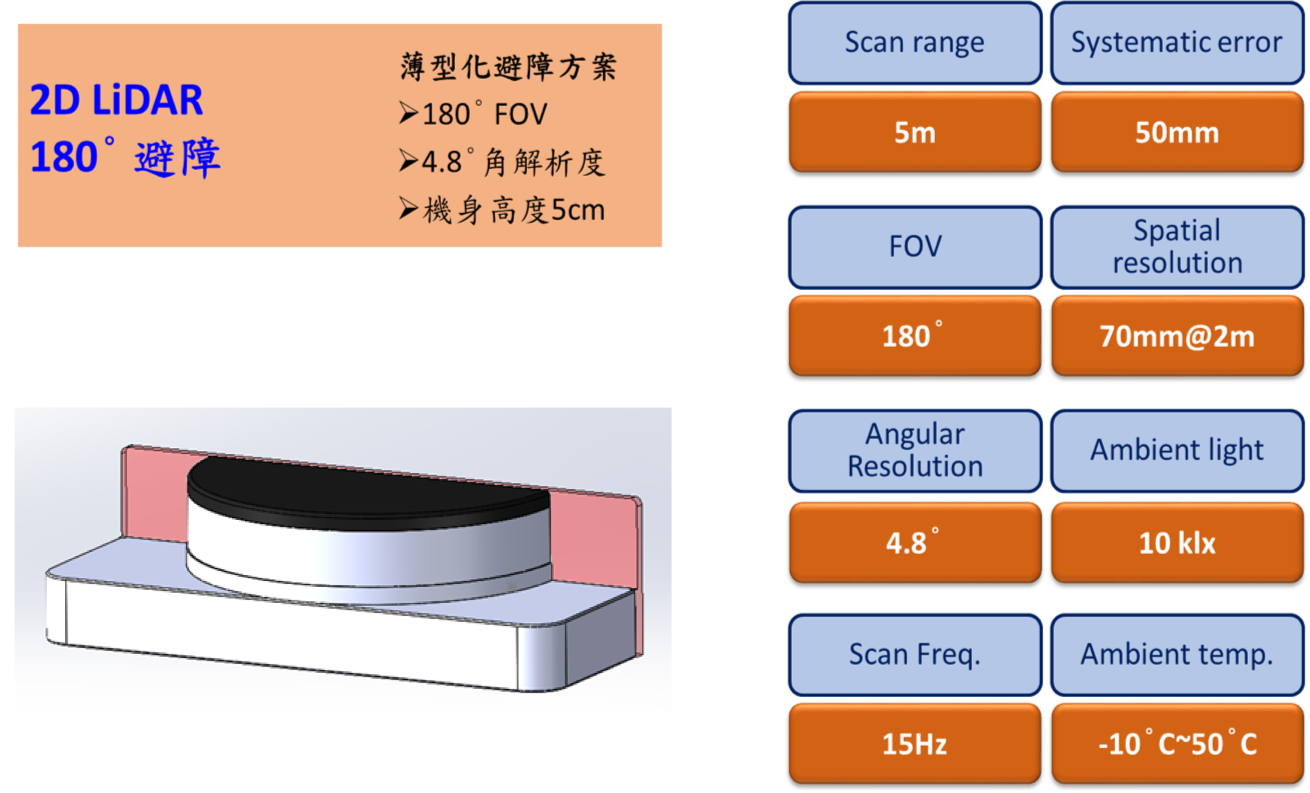

避障 LiDAR 產品細部規格

  • Detection Range : 0.1 to 5m
  • Systematic error : 50mm
  • FOV : 180°
  • Angular Resolution : 4.8°
  • Spatial Resolution : 70mm@2m 
  • Frame rate : 15Hz
  • Storage temperature : -10°C~50°C
  • Ambient light : 10,000Lux
  • Enclosure rating : IP65
