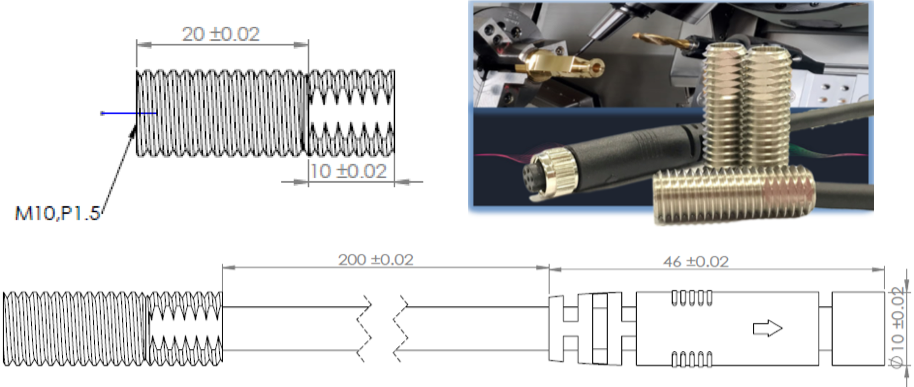

JNK-01 Vibration Node with screw

A. Accelerometer

  • Tri-axial digital accelerometer with ±16g dynamic range
  • Resolution: 2048 codes/g
  • Up to 25.6kSPS configurable data rate
  • Built-in programmable digital low- and high-pass filter

B. Temperature Sensor

  • Dynamic range: -55~+125°C
  • Resolution: 128 codes/°C

C. Powered by single 5V input voltage

D. −40°C to +85°C operation temperature range

E. Time domain threshold based condition monitoring

F. IP67 plastic package with cable connected

G. Modbus-RTU compatible interface over RS-485

  • Sensor configuration
  • Access raw sensor data (acceleration, velocity, temperature)
  • Access condition monitoring status
